Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: lightwell
  • Model Number: P8 SMD outdoor full color
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 8mm
  • Screen Dimension: Customized Size
  • Application: p8 outdoor full color display
  • Scaning: 1/4
  • Product name: led module p8
  • maximum power: 950w
  • option distance: 8-120
  • viewing angle: H140 V120
  • DRIVING DEVICE: 5020
  • REFRESH FREQUENCY: more 1200
  • Life span: 100000hours
  • safety: GB 4793

Packaging & Delivery

Packaging Details carton box
Delivery Time 7 working day

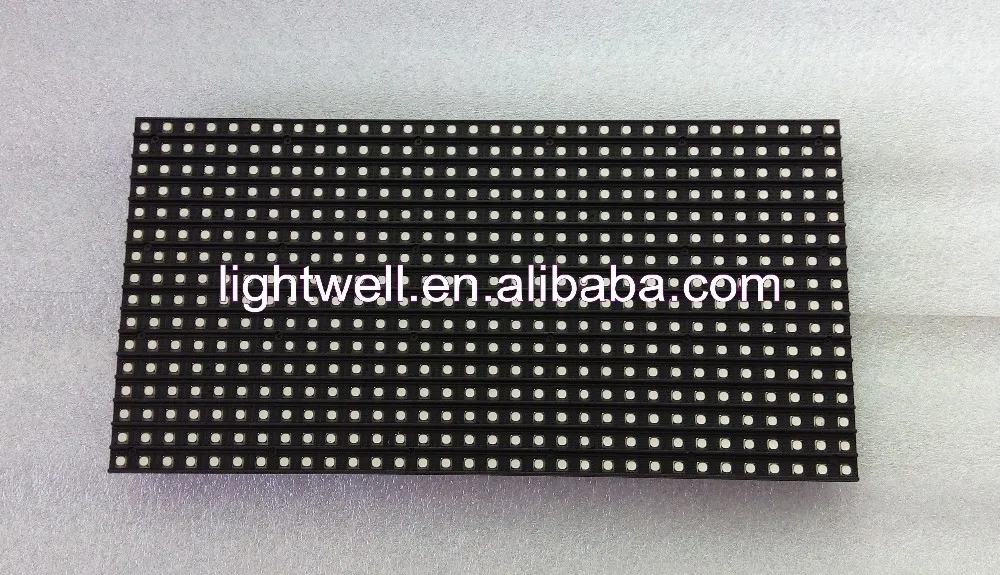

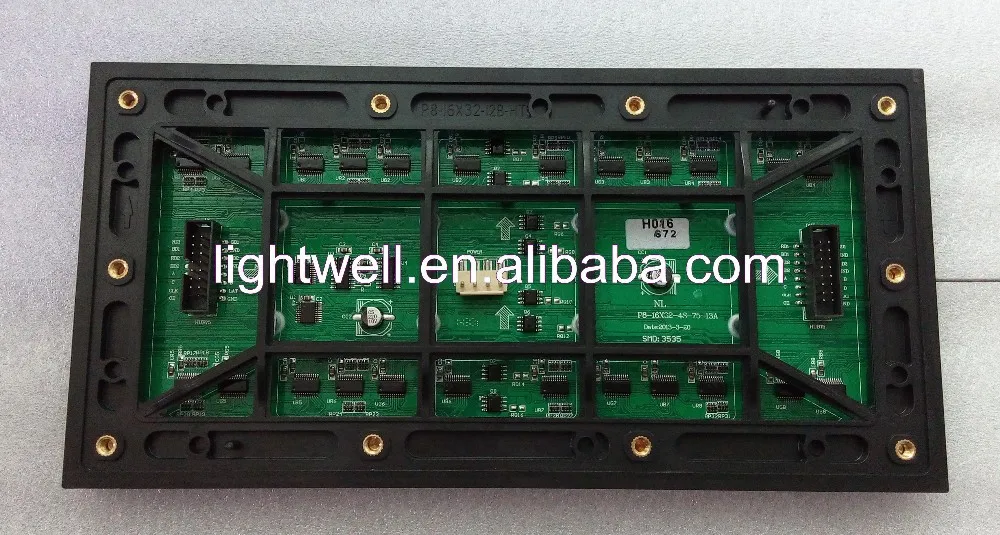

 led waterproof hot sale led module p8 outdoor full color display

hot sale product



Product Description





Technical parameter

Pixel pitch (mm)8
Cabinet size (mm)768*768
Brightness (nit)5000
Module size (mm)256*128
Pixel configuration (R,G,B)1,1,1
Pixel matrix per module (dot)32*16
Pixel (dot/s.q.m)15625
Viewing distance (Min) (m)8-70
Gray scale (level)4096
Refresh frequency (Hz)800
Input power (max/avg)800/300
Viewing angle-H (deg.)120 (+60/-60)
Viewing angle-V (deg.)60 (+30/-30)
Blind spot rate<1/10000
Color temperature (K)6500
Ingress protection (front/rear)IP65/IP43
Input voltage (AC)110 ~ 240
Input power frequency (Hz)50 or 60
Signal input format (with video processor)AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Operating systemWindows (2000/XP/Vista)
Control distanceCAT5 cable:<100 m; Single fiber:<10 km





  • 1,full-color LED display is composed of RGB trichromatic leds, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
  • 2,screen after use for a long time still can keep perfect quality and white balance and enough brightness.
  • 3, LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture
  • 4,high quality LED chips, antistatic, high wavelength stability;
  • 5, advanced packaging equipment, guarantee the quality and life expectancy;

Room

  • 6, has a large Angle, color uniformity, low failure rate and easy maintenance.
  • 7,,standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.



Equipment






Packaging & Shipping

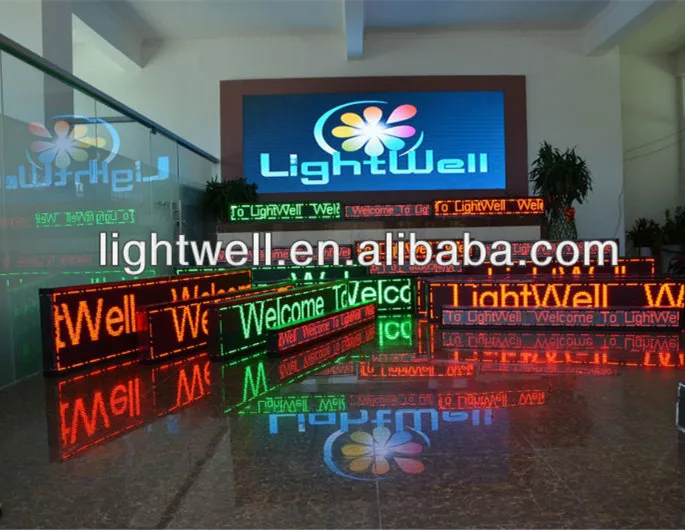

 company Information


Shenzhen Lightwell LED Display Technology Co,.LTD is a professional manufacture and exporter who specialized in developing and supplying LED Display. Our factory is located in Shenzhen. We are professional LED factory in China. Our company has many years’ experience at this field. So we have equipped complete and technically advanced equipments and facilities for our product line.

Our products include  Indoor Full Color LED Display, Outdoor Full Color LED Display, Outdoor Single and Double Color LED Display, ental LED display, Stadium Perimeter LED display and so on.

Our customers and their satisfaction are our number one priority. We are sure that we have an excellent quality with best price, we want to do it best for customers. We strive to uphold these values in everything that we do.







Certificates








FAQ



Q1:What is a static screen, what is to scan screen, what is the difference between the two?

A:Static screen refers to when the led screen display text, images and video, the lamp is lit at the same time on the led display light;

Scanning screen refers to the light like a scan on the led display, is the advantage of the characteristics of the human eye of persistence of vision, in a short time period will be led display all light respectively.

The difference between the two: because the LED display is driven by duty ratios, which makes the brightness of the LED display has a lot to do with the light of time cycle. So, in the same light tube with the same brightness, static screen is higher than scanning the brightness of the screen, so commonly used static screen need high brightness in the outdoor show, the scanning screen commonly used in the interior of brightness demand is not high, driven to save cost.





Q2:Display image is not complete or position is not right?

A:1,. Firstly check "display position" in the software and the "screen size" of the parameters and display the actual size is consistent, if you don't remember, can go to see behind the screen body, calculate the screen body length and width of the pixel points. "Screen size" is determined, can go to the computer software in and see how much "screen display area", and then adjusted, until the position match.

2, if the display is not comprehensive, checks the screen connection to load the file is in agreement with the screen "screen size".

3,plays in the image is in agreement with the screen size, some image for 16:9 or 4:3 ratio, so released images won't full-screen playback.





Q3:There is no sound LED display screen?

A:1, confirm that the computer sound card, use the earphone test. If there is a voice.

2. Confirm the computer sound output problem is normal to the screen body contact amplifiers, and the power amplifier to the audio cable is normal.

3, once again confirm the computer sound card and other equipment have sound card without conflict.







Q4:Unit module, one or more lines are not bright?

A:1, use multimeter to check out a line with the 4953 IC (manager) if there is a general output pin.

2, use a multimeter to check 74 hc138ic input and output is normal.

3, using a multimeter to check if 4953 IC burning or burned.

4, using a multimeter to check whether there is high level 4953 IC (voltage).

5, use multimeter to check 74 hc138 and 4953 control foot pass.





Q5:Display jitter (scintillation) have stripes?

A:1, check whether the DVI signal line contact is in good condition, and signal lines are in good condition, the presence of poor contact, or the signal wire RJ45 crystal head with and without oxidation phenomenon.

2, check the signal lines for damage phenomenon.

3, check whether signal lines with high voltage cable, identified and separated. (signal wire and cable, power supply of electromagnetic interference) of weak current signal has great.







Thank you for your visit so much !
